Features
- Designed for high-volume water transfer at low head
- Suitable for water temperatures up to 45°C
- IP44 certified
- 1.5-inch inlet and outlet connections
Specifications
| Brand | Big Jack |
|---|---|
| Power | 0.75 HP |
| Maximum water temperature | 45°C |
| Motor | Two-pole induction motor |
| Protection rating | IP44 |
| Motor protection | Thermal protector for single-phase models |

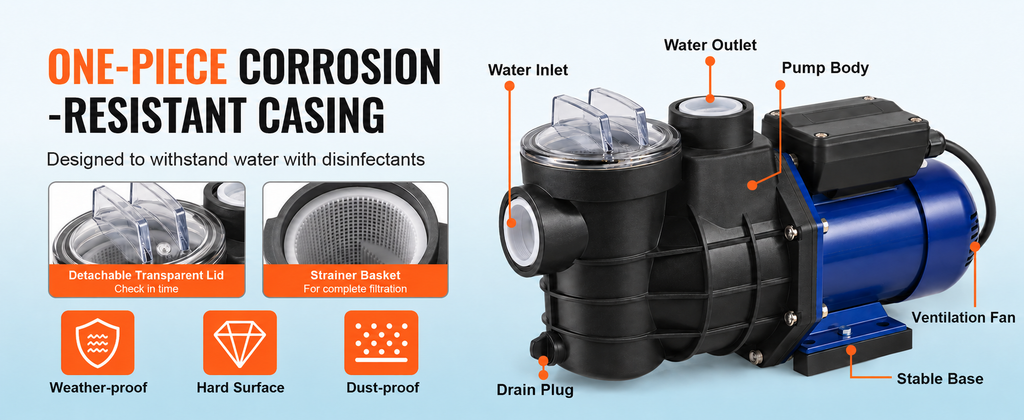

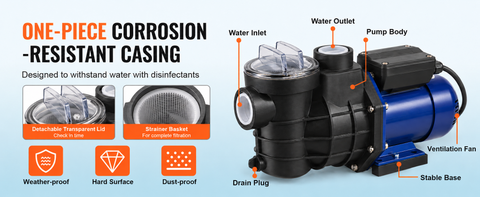

| Pump body | Techno-polymer |
| Pump support | Aluminum |
| Motor housing | Alloy |
| Impeller | Techno-polymer |
| Motor shaft | AISI 304 stainless steel |
| Mechanical seal | Ceramic / graphite |
| Maximum ambient temperature | 40°C |
| Maximum total suction lift | 8 m |
| Inlet / outlet size | 1.5 in. / 1.5 in. |
Electrical configuration
Supplied in the box wired for 120 V. The pump can be switched to 240 V.

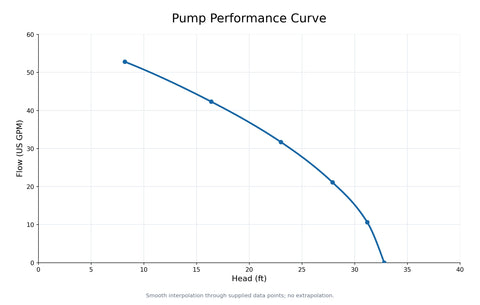

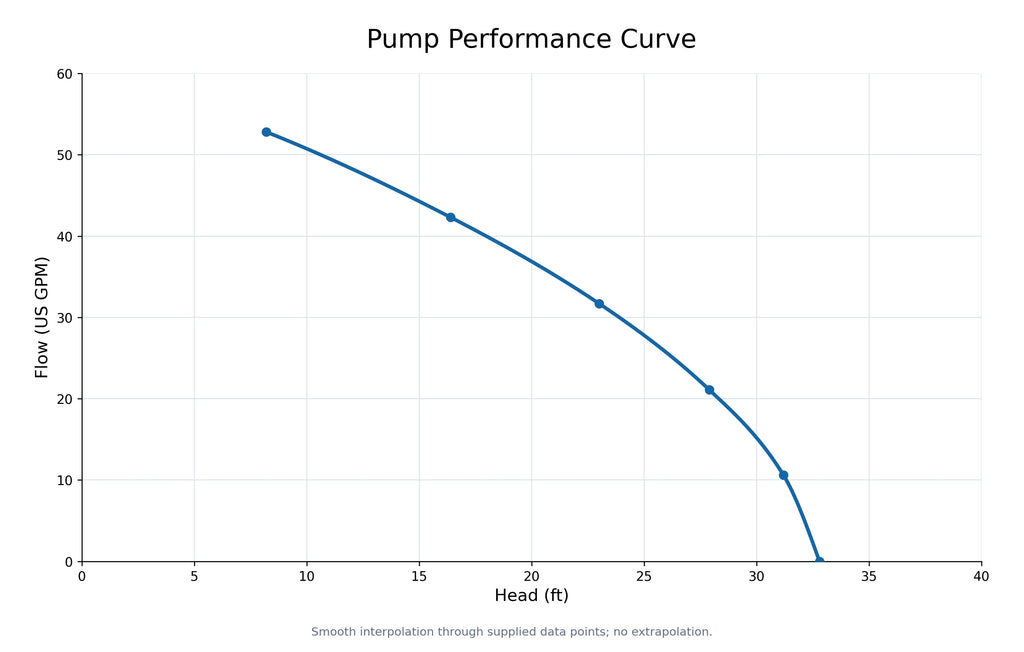

Performance
Manufacturer performance data at 2,850 RPM. Flow is in US gallons per minute (GPM); head is in feet. Values are rounded to one decimal place.
| Flow (US GPM) | Head (ft) |
|---|---|
| 0.0 | 32.8 |
| 10.6 | 31.2 |
| 21.1 | 27.9 |
| 31.7 | 23.0 |
| 42.3 | 16.4 |
| 52.8 | 8.2 |
This curve applies at 2,850 RPM; performance at other motor speeds may differ.
