The BIG JACK 2 HP Deep Well Pump can be used for deep wells and reservoirs to deliver clean water from deep wells. This well pump has been engineered with a brass top for extra durability and longevity. This unit does not require a control box for installation.
Features & Technical Specifications:
- 4" deep well submersible pump
- 220V, 2HP, 13.5 Amps, 1 phase, 60 hz, 312 feet max head, 20 GPM Max

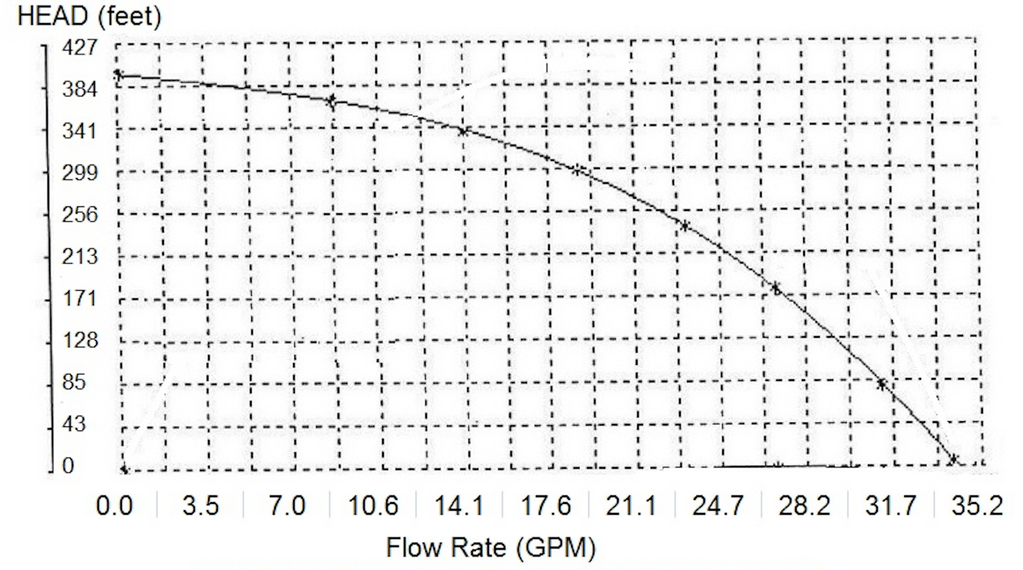

- 312' head is to an open tank. Please refer to graph for GPM
- This pump has a much longer pump life than the all-plastic-bottom-suction pump.
- Solid stainless steel body with heavy duty cast iron discharge.
- This is a 2 wire setup (2 + ground) no control box required.
- 10' long electric cord, installation tape & electric tape kits are all included.
- 1-1/4” NPT discharge. Include a built in check valve.
- High efficiency, hermetically sealed motor is thermally protected to prevent overheating, and uses less energy.
- Submersible design eliminates the need for priming and creates quiet operation
- 2 HP capacitor start, and thermal protection switch, for longer life and powerful start
